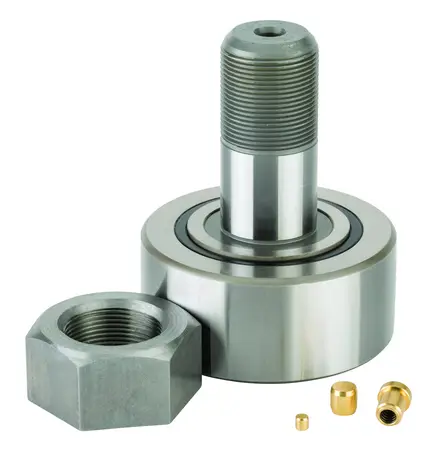

NTN NUKR40
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Metric
Cage Material
None
Limiting Speed - Grease
4700 RPM
Roller Type
Crowned
Stud Type
Standard
Bearing Type
Needle Roller Bearing
Outside Ring Type
Spherical
Enclosure
Shielded
Drive Type
Slot
Configuration
One
Torque
76.0 N·m
Static Load Rating
29100 N
Dynamic Load Rating
24100 N
Load Rating of Track
3850 N
Weight
0.242 kg
Operating Temperature Range
-40 to 120 ºC

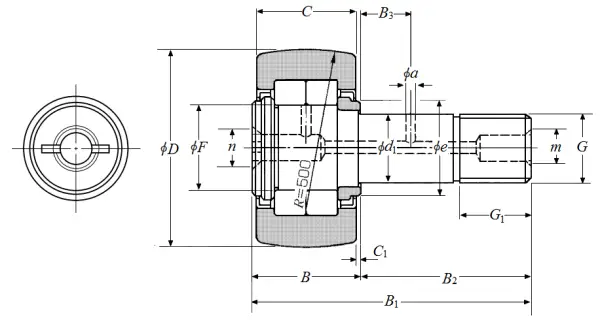

Dimensional Specifications
G
M18x1.5
B1
58.000 mm
B2
36.500 mm
D
40.000 mm
D Tolerance
0/-0.050 mm
B
21.500 mm
C
20.000 mm
d1
18.000 mm
d1 Tolerance
0/-0.018 mm
G1
19 mm
e
23.000 mm
B3
8.000 mm
a
3.000 mm
F
21.500 mm
C1
0.800 mm
n
6.000 mm
m
6.000 mm
Grease Nipple Size
NIP-B6
