NTN NUKRU100
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Metric
Cage Material
None
Limiting Speed - Grease
2000 RPM
Roller Type
Crowned
Stud Type
Eccentric
Bearing Type
Needle Roller Bearing
Outside Ring Type
Spherical
Enclosure
Shielded
Drive Type
Slot
Configuration
One
Torque
630.0 N·m
Static Load Rating
167000 N
Dynamic Load Rating
119000 N
Load Rating of Track
13000 N
Weight
3.080 kg
Operating Temperature Range
-40 to 120 ºC

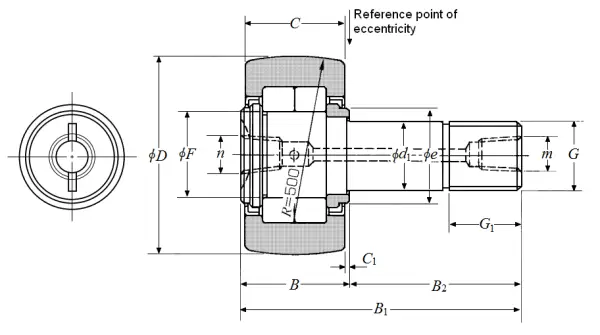

Dimensional Specifications
G
M36x1.5
B1
120.000 mm
B2
74.000 mm
D
100.000 mm
D Tolerance
0/-0.050 mm
B
46.000 mm
C
43.000 mm
d1
36.000 mm
d1 Tolerance
0/-0.025 mm
G1
38.000 mm
e
53.000 mm
F
48.500 mm
C1
1.500 mm
n
PT1/8
m
PT1/8
Grease Nipple Size
A-PT1/8
