NTN NUKRU120
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Metric
Cage Material
None
Limiting Speed - Grease
1700 RPM
Roller Type
Crowned
Stud Type
Eccentric
Bearing Type
Needle Roller Bearing
Outside Ring Type
Spherical
Enclosure
Shielded
Drive Type
Slot
Configuration
One
Torque
1020.0 N·m
Static Load Rating
266000 N
Dynamic Load Rating
172000 N
Load Rating of Track
16400 N
Weight
5.170 kg
Operating Temperature Range
-40 to 120 ºC

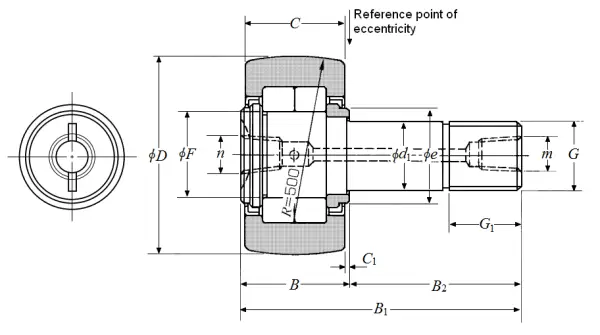

Dimensional Specifications
G
M42x1.5
B1
140.000 mm
B2
87.000 mm
D
120.000 mm
D Tolerance
0/-0.050 mm
B
53.000 mm
C
50.000 mm
d1
42.000 mm
d1 Tolerance
0/-0.025 mm
G1
44.000 mm
e
66.000 mm
F
60.500 mm
C1
1.500 mm
n
PT1/8
m
PT1/8
Grease Nipple Size
A-PT1/8
