NTN NUKRU140X
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Metric
Cage Material
None
Limiting Speed - Grease
1500 RPM
Roller Type
Cylindrical
Stud Type
Eccentric
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Shielded
Drive Type
Slot
Configuration
One
Torque
1540.0 N·m
Static Load Rating
294000 N
Dynamic Load Rating
201000 N
Load Rating of Track
152000 N
Weight
7.980 kg
Operating Temperature Range
-40 to 120 ºC

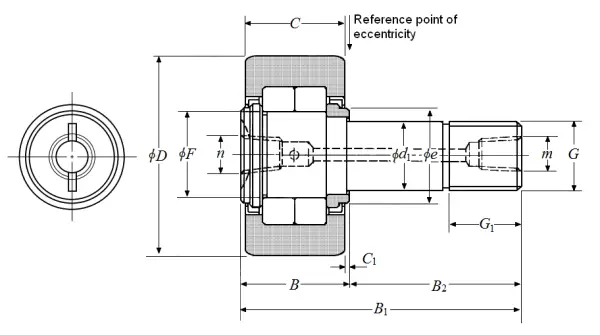

Dimensional Specifications
G
M48x1.5
B1
160.000 mm
B2
100.000 mm
D
140.000 mm
D Tolerance
0/-0.050 mm
B
60.000 mm
C
57.000 mm
d1
48.000 mm
d1 Tolerance
0/-0.025 mm
G1
52.000 mm
e
72.500 mm
F
65.000 mm
C1
1.500 mm
n
PT1/8
m
PT1/8
Grease Nipple Size
A-PT1/8
