NTN NUKRU150X
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Metric
Cage Material
None
Limiting Speed - Grease
1300 RPM
Roller Type
Cylindrical
Stud Type
Eccentric
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Shielded
Drive Type
Slot
Configuration
One
Torque
1950.0 N·m
Static Load Rating
380000 N
Dynamic Load Rating
258000 N
Load Rating of Track
173000 N
Weight
9.700 kg
Operating Temperature Range
-40 to 120 ºC

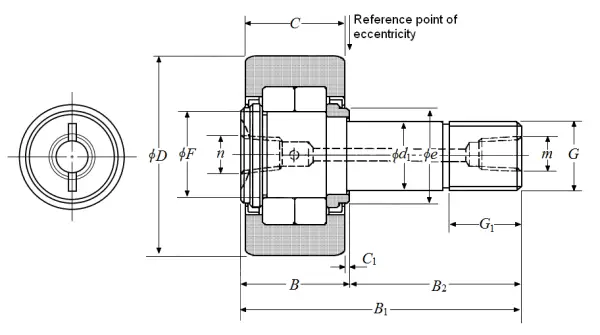

Dimensional Specifications
G
M52x1.5
B1
170.000 mm
B2
107.000 mm
D
150.000 mm
D Tolerance
0/-0.050 mm
B
63.000 mm
C
60.000 mm
d1
52.000 mm
d1 Tolerance
0/-0.030 mm
G1
52.000 mm
e
85.500 mm
F
75.500 mm
C1
1.500 mm
n
PT1/8
m
PT1/8
Grease Nipple Size
A-PT1/8
