NTN NUKRU160X
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Metric
Cage Material
None
Limiting Speed - Grease
1200 RPM
Roller Type
Cylindrical
Stud Type
Eccentric
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Shielded
Drive Type
Slot
Configuration
One
Torque
2480.0 N·m
Static Load Rating
400000 N
Dynamic Load Rating
274000 N
Load Rating of Track
194000 N
Weight
11.700 kg
Operating Temperature Range
-40 to 120 ºC

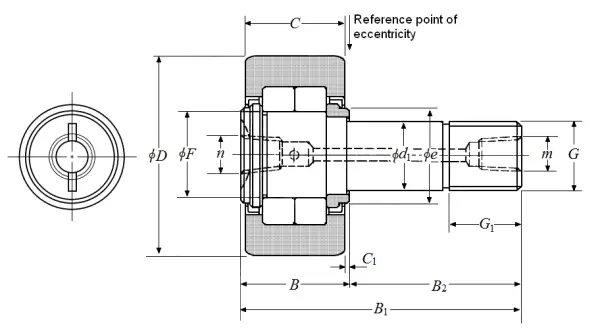

Dimensional Specifications
G
M56x3
B1
180.000 mm
B2
113.000 mm
D
160.000 mm
D Tolerance
0/-0.050 mm
B
67.000 mm
C
63.000 mm
d1
56.000 mm
d1 Tolerance
0/-0.030 mm
G1
58.000 mm
e
89.500 mm
F
80.500 mm
C1
2.000 mm
n
PT1/8
m
PT1/8
Grease Nipple Size
A-PT1/8
