NTN NUKRU170
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Metric
Cage Material
None
Limiting Speed - Grease
1100 RPM
Roller Type
Crowned
Stud Type
Eccentric
Bearing Type
Needle Roller Bearing
Outside Ring Type
Spherical
Enclosure
Shielded
Drive Type
Slot
Configuration
One
Torque
3030.0 N·m
Static Load Rating
475000 N
Dynamic Load Rating
320000 N
Load Rating of Track
26000 N
Weight
13.900 kg
Operating Temperature Range
-40 to 120 ºC

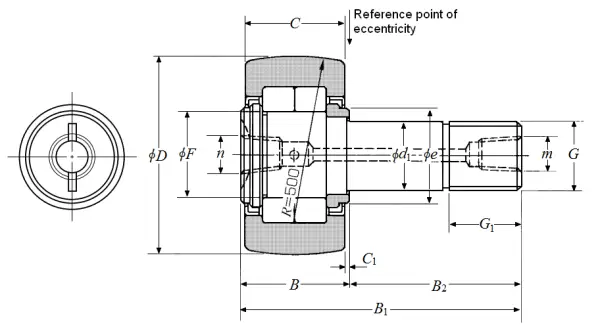

Dimensional Specifications
G
M60x3
B1
190.000 mm
B2
120.000 mm
D
170.000 mm
D Tolerance
0/-0.050 mm
B
70.000 mm
C
66.000 mm
d1
60.000 mm
d1 Tolerance
0/-0.030 mm
G1
58.000 mm
e
96.500 mm
F
86.000 mm
C1
2.000 mm
n
PT1/8
m
PT1/8
Grease Nipple Size
A-PT1/8
