NTN NUKRU180X
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Metric
Cage Material
None
Limiting Speed - Grease
1000 RPM
Roller Type
Cylindrical
Stud Type
Eccentric
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Shielded
Drive Type
Slot
Configuration
One
Torque
3670.0 N·m
Static Load Rating
555000 N
Dynamic Load Rating
365000 N
Load Rating of Track
253000 N
Weight
17.000 kg
Operating Temperature Range
-40 to 120 ºC

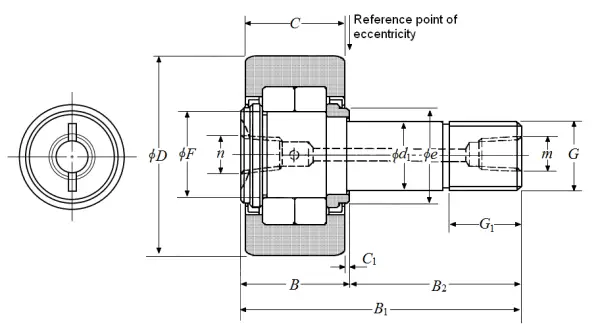

Dimensional Specifications
G
M64x3
B1
200.000 mm
B2
124.000 mm
D
180.000 mm
D Tolerance
0/-0.050 mm
B
76.000 mm
C
72.000 mm
d1
64.000 mm
d1 Tolerance
0/-0.030 mm
G1
65.000 mm
e
103.500 mm
F
91.500 mm
C1
2.000 mm
n
PT1/8
m
PT1/8
Grease Nipple Size
A-PT1/8
