NTN NUKRU30
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Metric
Cage Material
None
Limiting Speed - Grease
6900 RPM
Roller Type
Crowned
Stud Type
Eccentric
Bearing Type
Needle Roller Bearing
Outside Ring Type
Spherical
Enclosure
Shielded
Drive Type
Slot
Configuration
One
Torque
20.0 N·m
Static Load Rating
13500 N
Dynamic Load Rating
13300 N
Load Rating of Track
2620 N
Weight
0.088 kg
Operating Temperature Range
-40 to 120 ºC

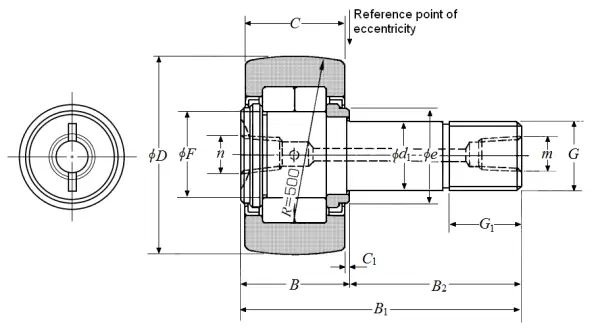

Dimensional Specifications
G
M12x1.5
B1
40.000 mm
B2
25.000 mm
D
30.000 mm
D Tolerance
0/-0.050 mm
B
15.000 mm
C
14.000 mm
d1
12.000 mm
d1 Tolerance
0/-0.018 mm
G1
13 mm
e
15.000 mm
F
14.500 mm
C1
0.600 mm
n
M6x0.75
m
M6x0.75
Grease Nipple Size
A-M6F
