NTN NUKRU47X
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Metric
Cage Material
None
Limiting Speed - Grease
4000 RPM
Roller Type
Cylindrical
Stud Type
Eccentric
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Shielded
Drive Type
Slot
Configuration
One
Torque
98.0 N·m
Static Load Rating
48000 N
Dynamic Load Rating
38500 N
Load Rating of Track
21000 N
Weight
0.380 kg
Operating Temperature Range
-40 to 120 ºC

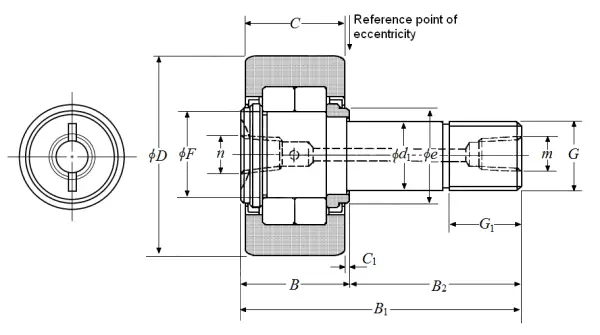

Dimensional Specifications
G
M20x1.5
B1
66.000 mm
B2
40.500 mm
D
47.000 mm
D Tolerance
0/-0.050 mm
B
25.500 mm
C
24.000 mm
d1
20.000 mm
d1 Tolerance
0/-0.021 mm
G1
21.000 mm
e
27.000 mm
F
25.500 mm
C1
0.800 mm
n
PT1/8
m
PT1/8
Grease Nipple Size
A-PT1/8
