NTN NUKRU90
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Metric
Cage Material
None
Limiting Speed - Grease
2100 RPM
Roller Type
Crowned
Stud Type
Eccentric
Bearing Type
Needle Roller Bearing
Outside Ring Type
Spherical
Enclosure
Shielded
Drive Type
Slot
Configuration
One
Torque
360.0 N·m
Static Load Rating
151000 N
Dynamic Load Rating
101000 N
Load Rating of Track
11400 N
Weight
1.960 kg
Operating Temperature Range
-40 to 120 ºC

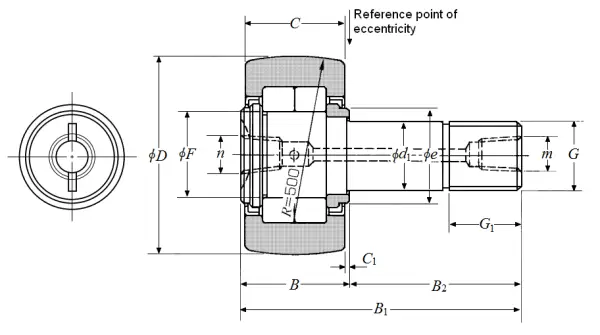

Dimensional Specifications
G
M30x1.5
B1
100.000 mm
B2
63.000 mm
D
90.000 mm
D Tolerance
0/-0.050 mm
B
37.000 mm
C
35.000 mm
d1
30.000 mm
d1 Tolerance
0/-0.021 mm
G1
32.000 mm
e
51.000 mm
F
47.500 mm
C1
1.000 mm
n
PT1/8
m
PT1/8
Grease Nipple Size
A-PT1/8
