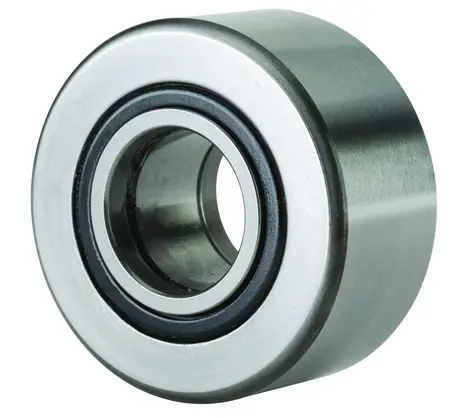

NTN NUTR208X
Roller Follower Yoke Type Track Roller Bearings w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Yoke Type Track Roller
Roller Type
Cylindrical
Bearing Type
Needle Roller Bearing
Material
High Carbon Chrome Steel
Cage Material
None
Outside Ring Type
Cylindrical
Limiting Speed - Grease
2100 RPM
Enclosure
Open
Static Load Rating
125000 N
Dynamic Load Rating
87000 N
Load Rating of Track
44500 N
Weight
0.817 kg
Operating Temperature Range
-40 to 120 ºC

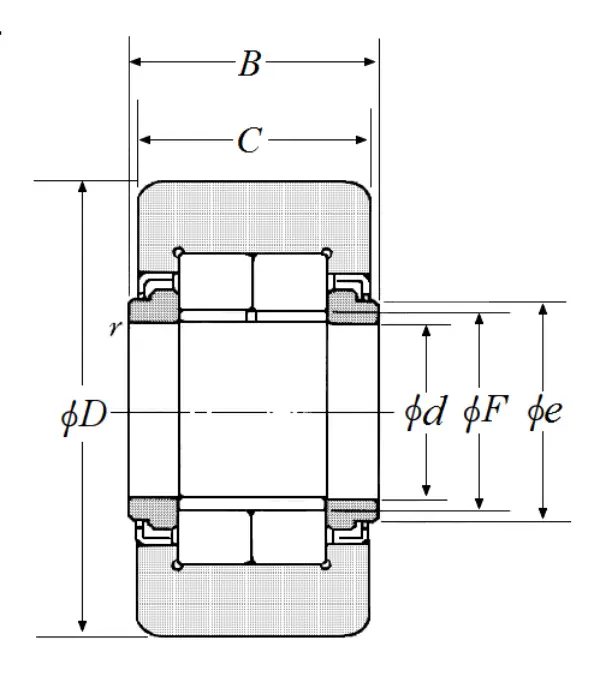

Dimensional Specifications
d
40.000 mm
D (0/-0.050)
80.000 mm
F
47.500 mm
e
51.000 mm
C
30.000 mm
B
32.000 mm
B Tolerance
0/-0.250 mm
r
0.600 mm
