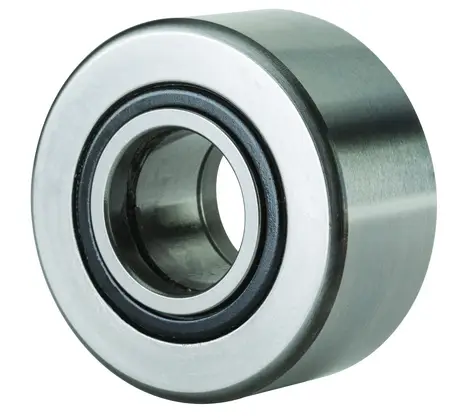

NTN NUTR310X
Roller Follower Yoke Type Track Roller Bearings w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Yoke Type Track Roller
Roller Type
Cylindrical
Bearing Type
Needle Roller Bearing
Material
High Carbon Chrome Steel
Cage Material
None
Outside Ring Type
Cylindrical
Limiting Speed - Grease
1800 RPM
Enclosure
Open
Static Load Rating
150000 N
Dynamic Load Rating
96500 N
Load Rating of Track
61000 N
Weight
1.690 kg
Operating Temperature Range
-40 to 120 ºC

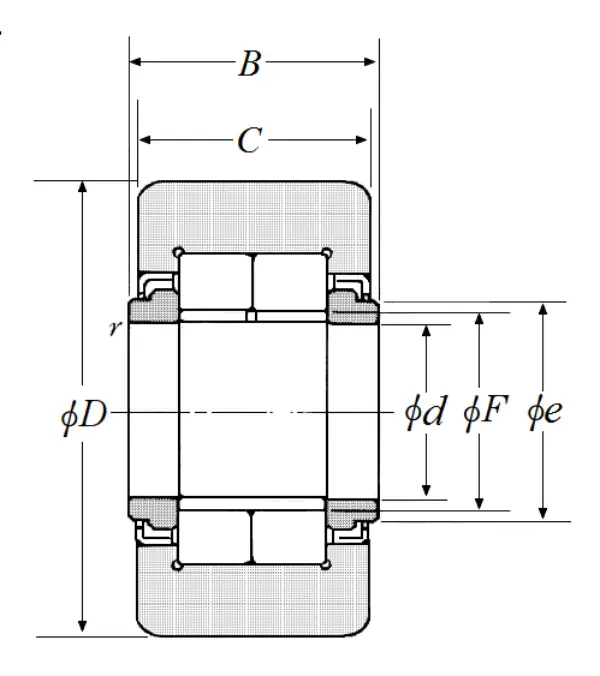

Dimensional Specifications
d
50.000 mm
D (0/-0.050)
110.000 mm
F
57.000 mm
e
60.000 mm
C
30.000 mm
B
32.000 mm
B Tolerance
0/-0.250 mm
r
0.600 mm
