NTN NUTW203
Roller Follower Yoke Type Track Roller Bearings w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Yoke Type Track Roller
Roller Type
Cylindrical
Bearing Type
Needle Roller Bearing
Material
High Carbon Chrome Steel
Cage Material
None
Outside Ring Type
Spherical
Limiting Speed - Grease
4700 RPM
Enclosure
Shielded
Static Load Rating
32000 N
Dynamic Load Rating
26000 N
Load Rating of Track
3850 N
Weight
0.167 kg
Operating Temperature Range
-40 to 120 ºC

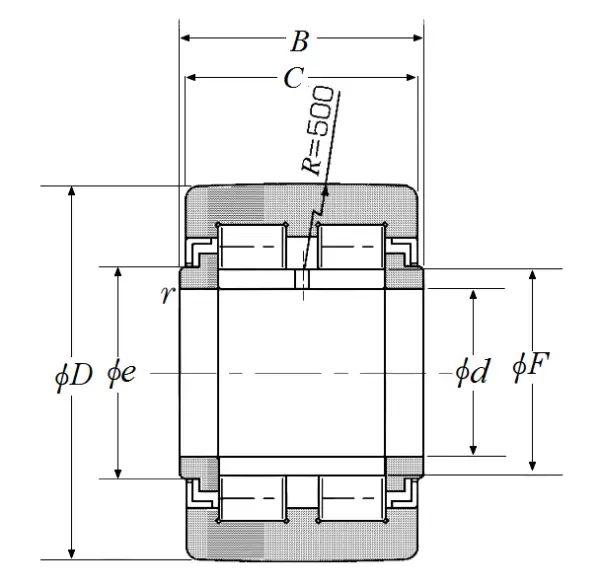

Dimensional Specifications
d
17.000 mm
D (0/-0.050)
40.000 mm
F
21.500 mm
e
22.000 mm
C
23.000 mm
B
24.000 mm
B Tolerance
0/-0.210 mm
r
0.300 mm
