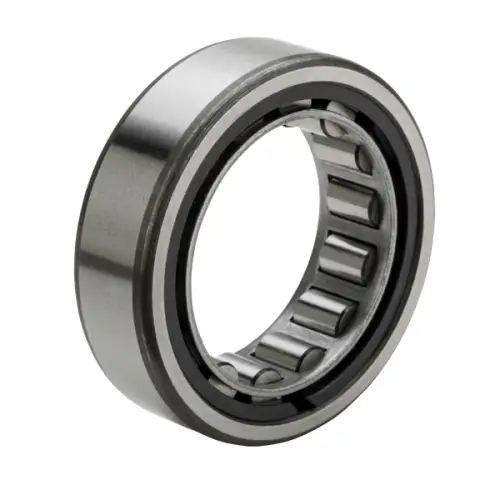

NTN R1535TAV
Cylindrical Roller Bearings - Custom "R" Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
One Piece Steel
Precision
ISO Class 0 (RBEC 1)
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
33500 N
Dynamic Load Rating
32000 N
Enclosure
Open
Weight
0.099 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
Bore Size
28.174 mm
Outside Diameter
47.000 mm
Outside Ring Width
16.662 mm
Inside Ring Width
16.662 mm
Total Width
16.662 mm
