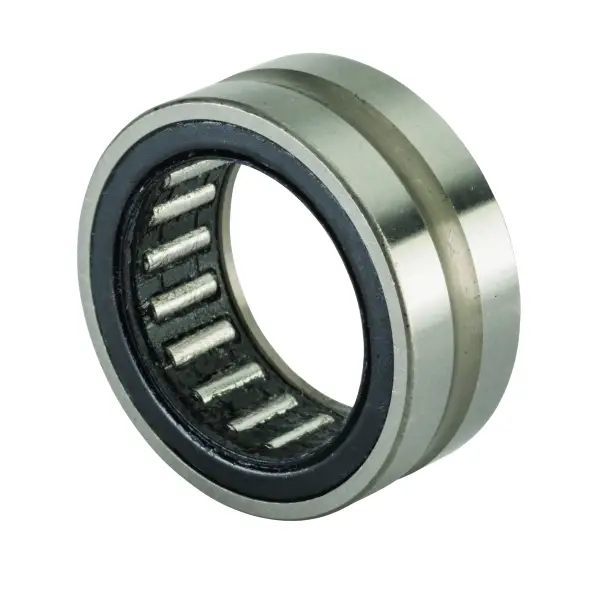

NTN RNA4902L
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Grease
10000 RPM
Precision
ISO Class 0
Enclosure
Single Sealed
Static Load Rating
11200 N
Dynamic Load Rating
8300 N
Weight
0.022 kg
Operating Temperature Range
-40 to 120 ºC

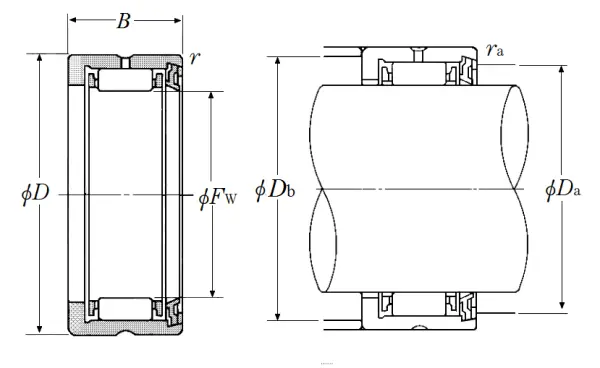

Dimensional Specifications
Fw
20.000 mm
Fw Tolerance
0.033/0.020 mm
D
28.000 mm
C
13.000 mm
r
0.300 mm
Da max
22.000 mm
Db max
26.000 mm
ras max
0.300 mm
