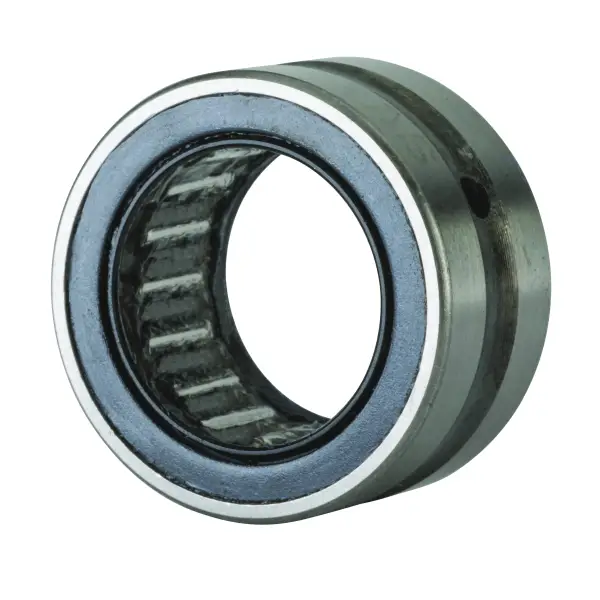

NTN RNA4904LL
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Grease
8000 RPM
Precision
ISO Class 0
Enclosure
Double Sealed
Static Load Rating
19900 N
Dynamic Load Rating
15200 N
Weight
0.055 kg
Operating Temperature Range
-40 to 120 ºC

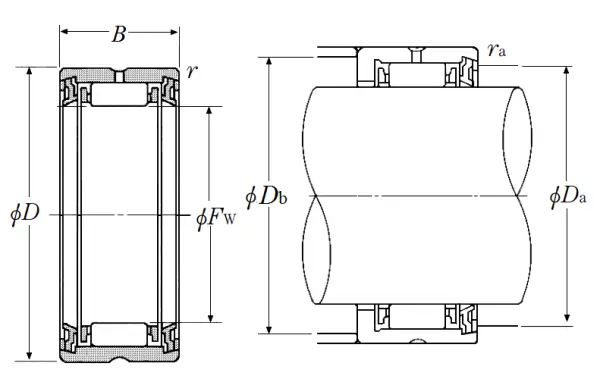

Dimensional Specifications
Fw
25.000 mm
Fw Tolerance
0.033/0.020 mm
D
37.000 mm
C
17.000 mm
r
0.300 mm
Da max
28.000 mm
Db max
35.000 mm
ras max
0.300 mm
