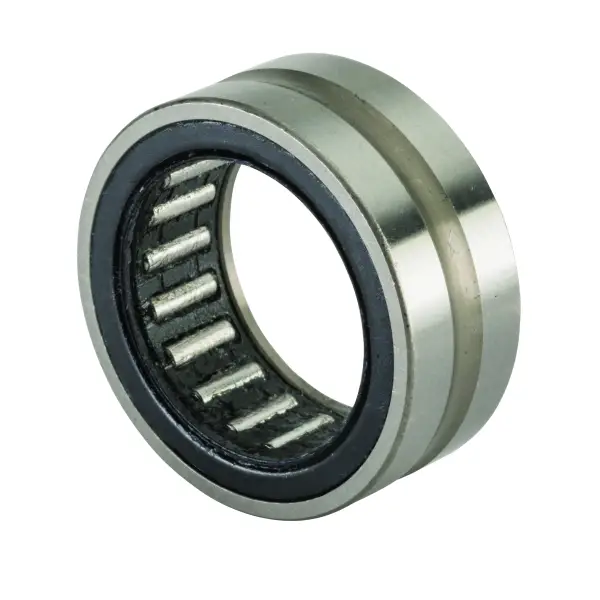

NTN RNA4906L
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Grease
5500 RPM
Precision
ISO Class 0
Enclosure
Single Sealed
Static Load Rating
27400 N
Dynamic Load Rating
18000 N
Weight
0.072 kg
Operating Temperature Range
-40 to 120 ºC

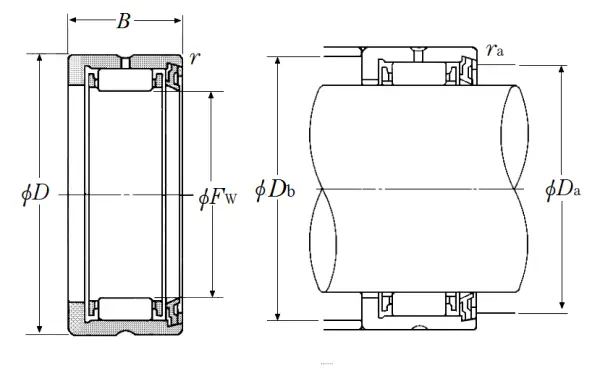

Dimensional Specifications
Fw
35.000 mm
Fw Tolerance
0.041/0.025 mm
D
47.000 mm
C
17.000 mm
r
0.300 mm
Da max
38.000 mm
Db max
45.000 mm
ras max
0.300 mm
