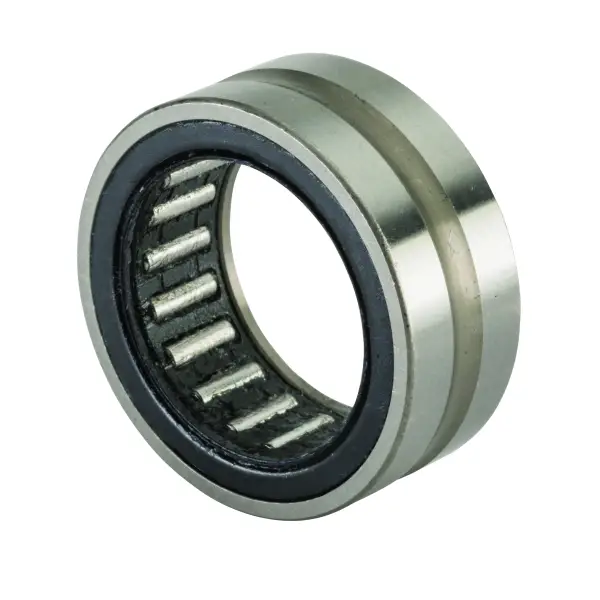

NTN RNA4907L
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Grease
4800 RPM
Precision
ISO Class 0
Enclosure
Single Sealed
Static Load Rating
39500 N
Dynamic Load Rating
22700 N
Weight
0.113 kg
Operating Temperature Range
-40 to 120 ºC

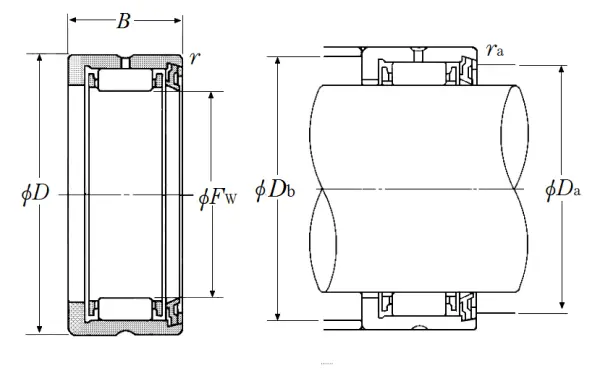

Dimensional Specifications
Fw
42.000 mm
Fw Tolerance
0.041/0.025 mm
D
55.000 mm
C
20.000 mm
r
0.600 mm
Da max
45.000 mm
Db max
51.000 mm
ras max
0.600 mm
