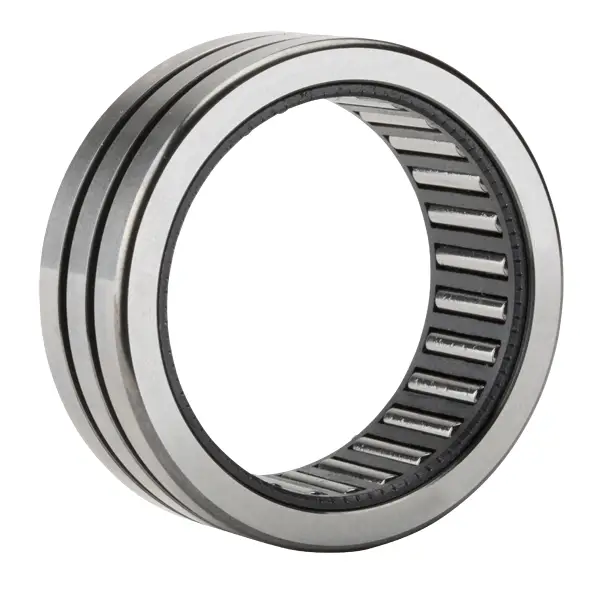

NTN RNA4919S
Clearance-Adjustable Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Clearance-Adjustable Needle Roller Bearing
Roller Type
Needle
Bearing Type
Needle Roller Bearing
Configuration
One
Bearing Design
w/o Inner Ring
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
3600 RPM
Limiting Speed - Grease
2400 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
152000 N
Dynamic Load Rating
59500 N
Weight
0.735 kg
Operating Temperature Range
-40 to 120 ºC

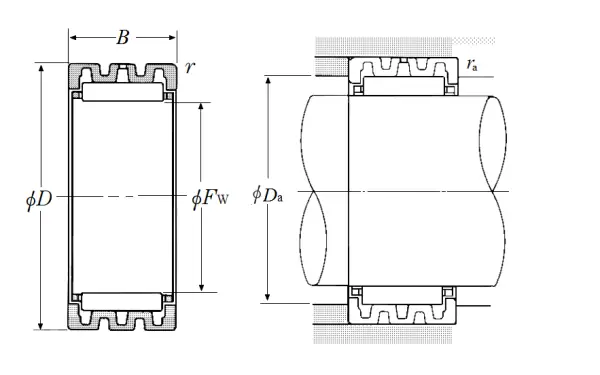

Dimensional Specifications
Fw
110.000 mm
D
130.000 mm
B
35.000 mm
r
1.100 mm
Da max
118.000 mm
ras max
1.000 mm
