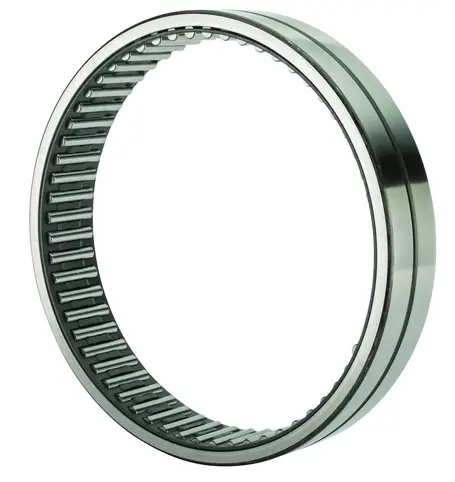

NTN RNA496
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
32000 RPM
Limiting Speed - Grease
21000 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
3000 N
Dynamic Load Rating
3150 N
Weight
0.008 kg
Operating Temperature Range
-40 to 120 ºC

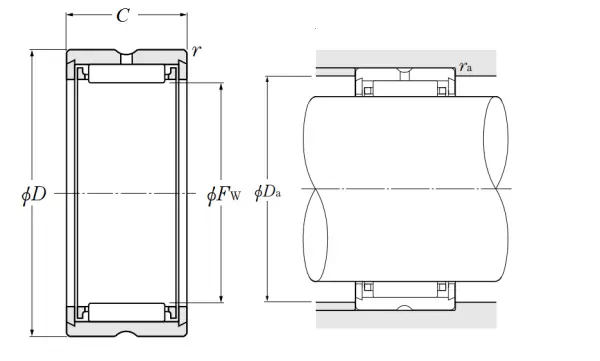

Dimensional Specifications
Fw
8.000 mm
Fw Tolerance
0.022/0.013 mm
D
15.000 mm
C
10.000 mm
r
0.150 mm
Da max
9.500 mm
ras max
0.150 mm
