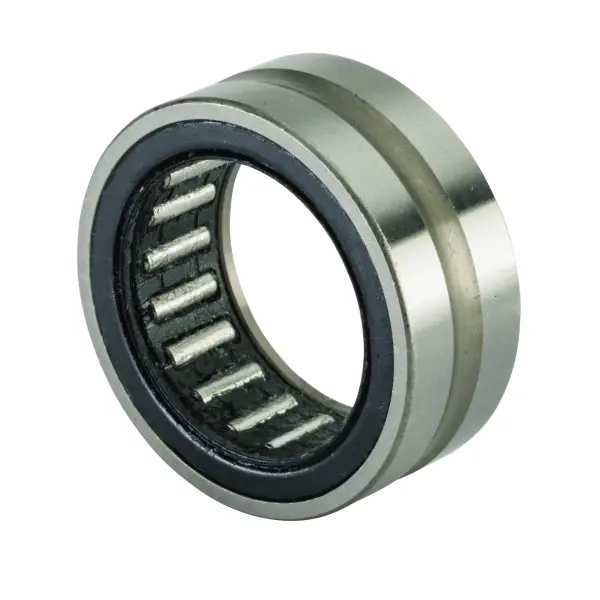

NTN RNA5907E
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
9500 RPM
Limiting Speed - Grease
6500 RPM
Precision
ISO Class 0
Enclosure
Open
Weight
0.176 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
Fw
42.000 mm
Fw Tolerance
0.041/0.025 mm
D
55.000 mm
C
27.000 mm
r
0.600 mm
Da max
51.000 mm
ras max
0.600 mm
