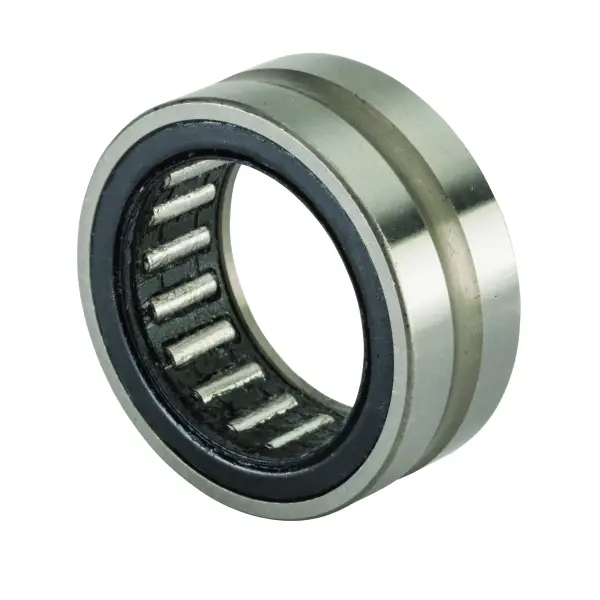

NTN RNA5910
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
7000 RPM
Limiting Speed - Grease
4700 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
110000 N
Dynamic Load Rating
58000 N
Weight
0.234 kg
Operating Temperature Range
-40 to 120 ºC

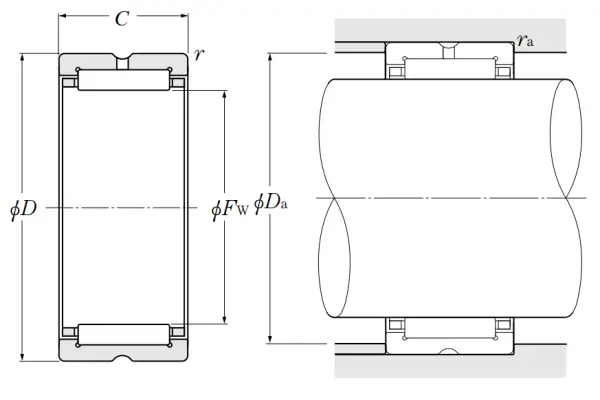

Dimensional Specifications
Fw
58.000 mm
Fw Tolerance
0.049/0.030 mm
D
72.000 mm
C
30.000 mm
r
0.600 mm
Da max
68.000 mm
ras max
0.600 mm
