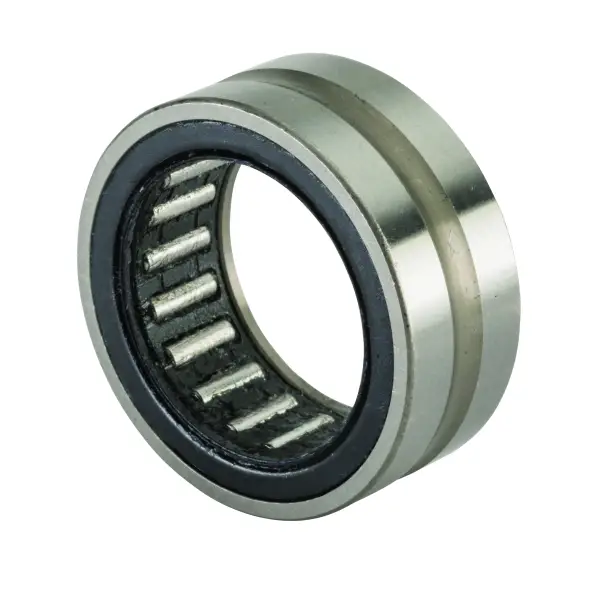

NTN RNA5914
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
5000 RPM
Limiting Speed - Grease
3300 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
187000 N
Dynamic Load Rating
103000 N
Weight
0.647 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
Fw
80.000 mm
Fw Tolerance
0.049/0.030 mm
D
100.000 mm
C
40.000 mm
r
1.000 mm
Da max
95.000 mm
ras max
1.000 mm
