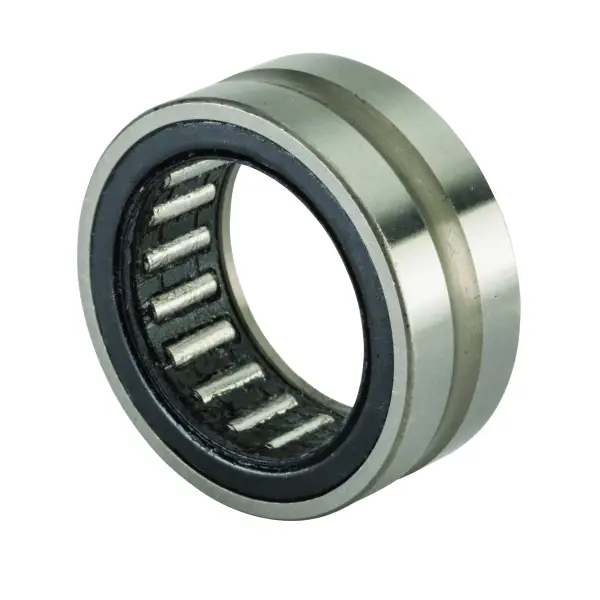

NTN RNA5926
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
2700 RPM
Limiting Speed - Grease
1800 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
685000 N
Dynamic Load Rating
294000 N
Weight
3.710 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
Fw
150.000 mm
Fw Tolerance
0.068/0.043 mm
D
180.000 mm
C
67.000 mm
r
1.500 mm
Da max
172.000 mm
ras max
1.500 mm
