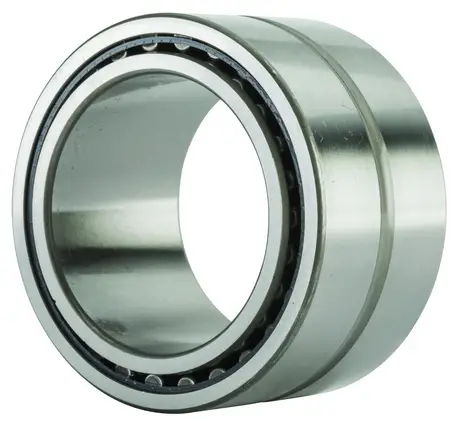

NTN RNA6916R
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
4400 RPM
Limiting Speed - Grease
2900 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
298000 N
Dynamic Load Rating
137000 N
Weight
0.987 kg
Operating Temperature Range
-40 to 120 ºC

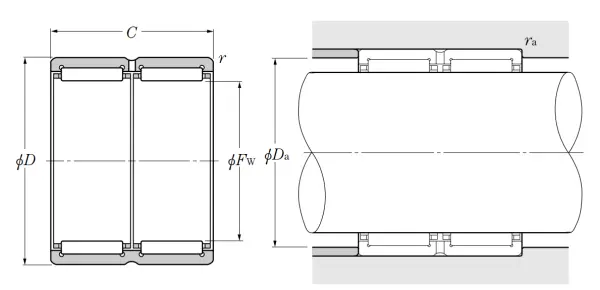

Dimensional Specifications
Fw
90.000 mm
Fw Tolerance
0.058/0.036 mm
D
110.000 mm
C
54.000 mm
r
1.000 mm
Da max
105.000 mm
ras max
1.000 mm
