NTN RNAB2/6X
Roller Follower: Yoke Type Track Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Yoke Type Track Roller
Bearing Type
Needle Roller Bearing
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Nylon
Outside Ring Type
Cylindrical
Limiting Speed - Oil
20000 RPM
Limiting Speed - Grease
15000 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
5350 N
Dynamic Load Rating
4700 N
Weight
0.013 kg
Operating Temperature Range
-40 to 120 ºC

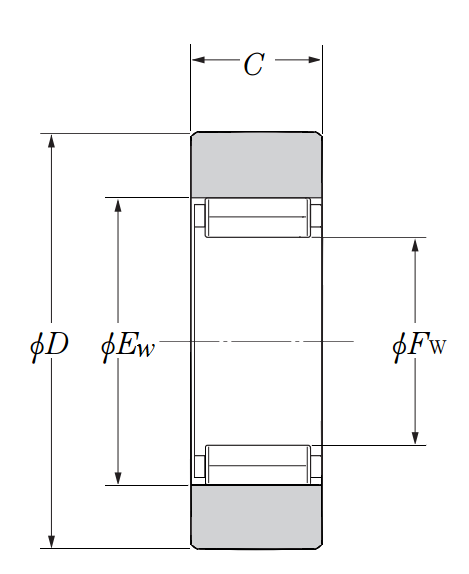

Dimensional Specifications
Fw
10.000 mm
Fw Tolerance
0.022/0.013 mm
D 0/-0.050
19.000 mm
Ew
13.000 mm
C
15.800 mm
