NTN RNAB2/8
Roller Follower: Yoke Type Track Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Yoke Type Track Roller
Bearing Type
Needle Roller Bearing
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Outside Ring Type
Spherical
Limiting Speed - Oil
16000 RPM
Limiting Speed - Grease
12000 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
9500 N
Dynamic Load Rating
9700 N
Weight
0.021 kg
Operating Temperature Range
-40 to 120 ºC

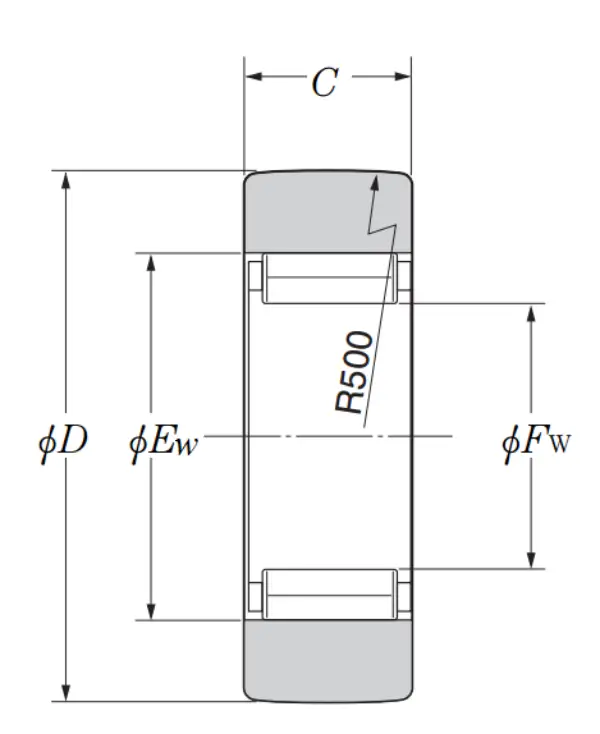

Dimensional Specifications
Fw
12.000 mm
Fw Tolerance
0.027/0.016 mm
D 0/-0.050
24.000 mm
Ew
15.000 mm
C
9.800 mm
