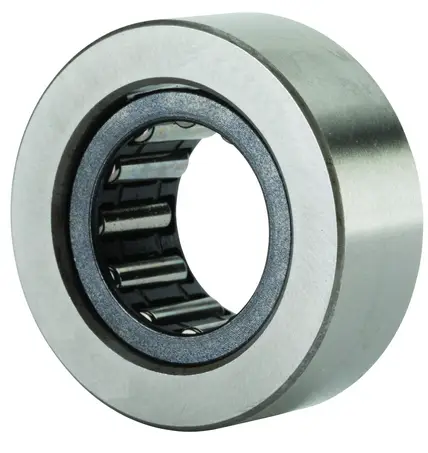

NTN RNAB205
Roller Follower: Yoke Type Track Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Yoke Type Track Roller
Bearing Type
Needle Roller Bearing
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Outside Ring Type
Spherical
Limiting Speed - Oil
6500 RPM
Limiting Speed - Grease
5000 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
32000 N
Dynamic Load Rating
22700 N
Weight
0.150 kg
Operating Temperature Range
-40 to 120 ºC

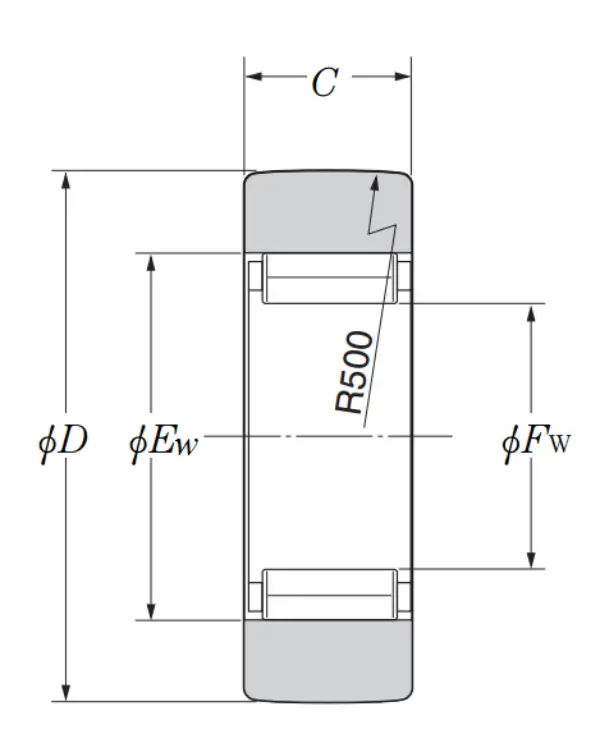

Dimensional Specifications
Fw
30.000 mm
Fw Tolerance
0.033/0.020 mm
D 0/-0.050
52.000 mm
Ew
37.000 mm
C
15.800 mm
