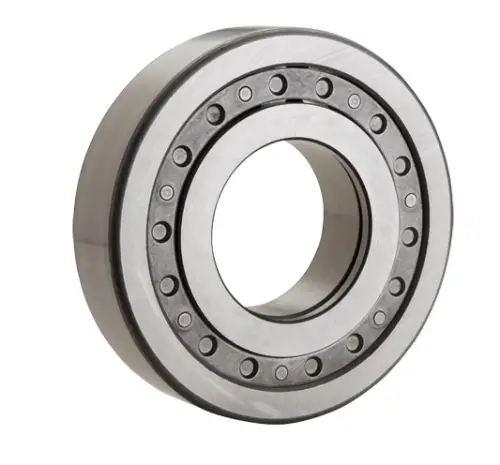

NTN RNJ6902HSV2
Cylindrical Roller Bearings - Custom "R" Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Precision
ISO Class 0 (RBEC 1)
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
1950000 N
Dynamic Load Rating
955000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
Bore Size
342.850 mm
Outside Diameter
457.200 mm
Outside Ring Width
69.850 mm
Inside Ring Width
69.850 mm
Inside Ring O.D.
370.000 mm
Total Width
69.850 mm
