NTN RPNA35/52R
Self-Aligning Needle Roller Bearings - w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self-Aligning Needle Roller Bearing
Configuration
One
Bearing Design
w/o Inner Ring
Material
High Carbon Chrome Steel
Limiting Speed - Oil
13000 RPM
Limiting Speed - Grease
7800 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
41500 N
Dynamic Load Rating
24800 N
Weight
0.131 kg

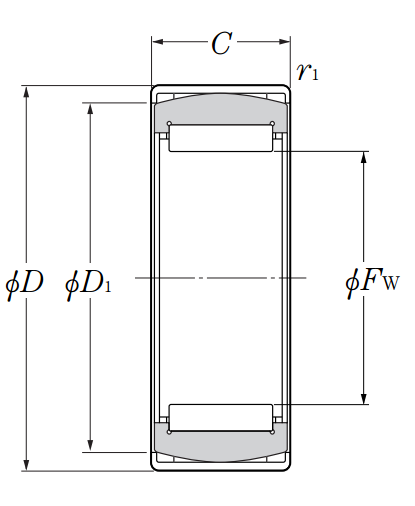

Dimensional Specifications
Fw
35.000 mm
D
52.000 mm
D1
47.500 mm
C
20.000 mm
r1
0.8 mm
