NTN RPNA40/55R
Self-Aligning Needle Roller Bearings - w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self-Aligning Needle Roller Bearing
Configuration
One
Bearing Design
w/o Inner Ring
Material
High Carbon Chrome Steel
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
6600 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
47000 N
Dynamic Load Rating
26400 N
Weight
0.141 kg

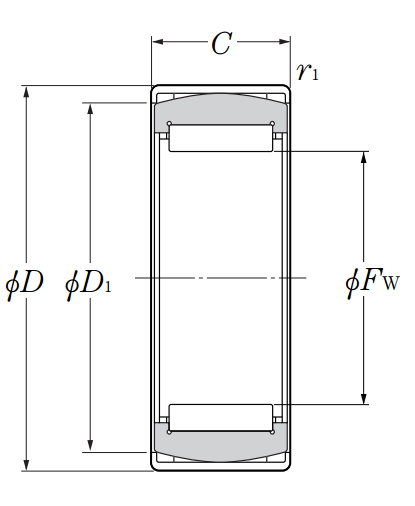

Dimensional Specifications
Fw
40.000 mm
D
55.000 mm
D1
50.500 mm
C
20.000 mm
r1
0.8 mm
