NTN RPNA45/62R
Self-Aligning Needle Roller Bearings - w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self-Aligning Needle Roller Bearing
Configuration
One
Bearing Design
w/o Inner Ring
Material
High Carbon Chrome Steel
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
6000 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
52500 N
Dynamic Load Rating
28000 N
Weight
0.176 kg

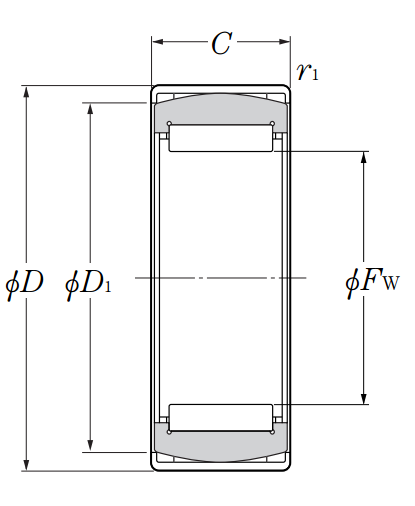

Dimensional Specifications
Fw
45.000 mm
D
62.000 mm
D1
58.000 mm
C
20.000 mm
r1
0.8 mm
