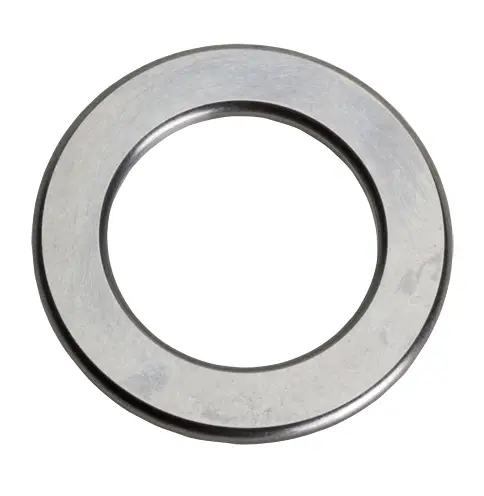

NTN WS81117
Inner Rings for Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Precision
ISO Class 0
Weight
0.175 kg
Operating Temperature Range
-40 to 120 ºC

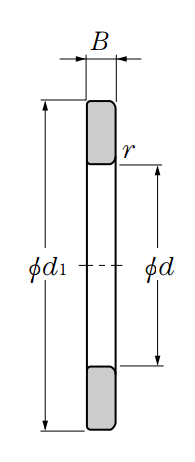

Dimensional Specifications
d
85.000 mm
d1 (-0.2/-0.5)
110.000 mm
B
5.750 mm
r
1.000 mm
