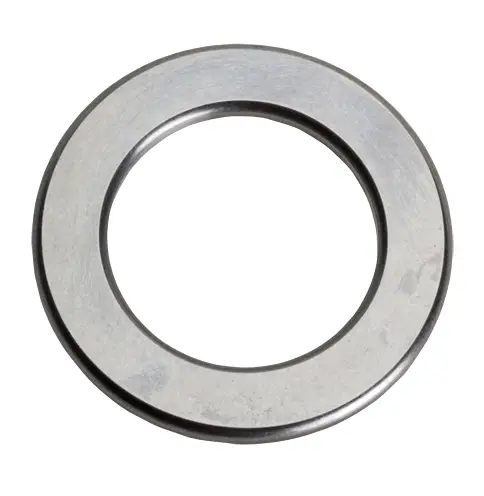

NTN WS81128
Inner Rings for Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Precision
ISO Class 0
Weight
0.750 kg
Operating Temperature Range
-40 to 120 ºC

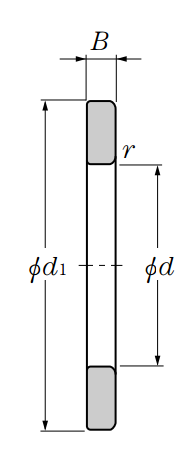

Dimensional Specifications
d
140.000 mm
d1 (-0.2/-0.5)
178.000 mm
B
9.500 mm
r
1.000 mm
