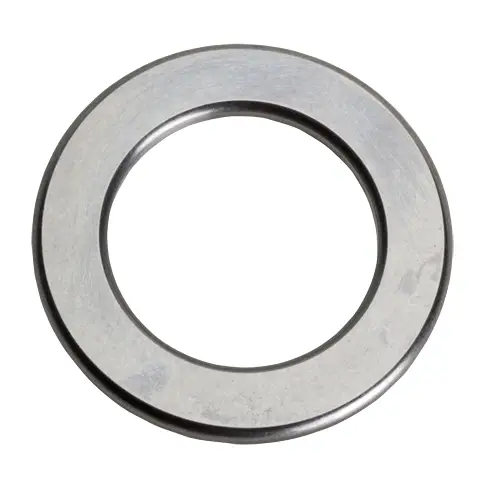

NTN WS81209
Inner Rings for Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Precision
ISO Class 0
Weight
0.105 kg
Operating Temperature Range
-40 to 120 ºC

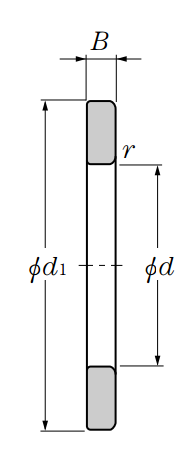

Dimensional Specifications
d
45.000 mm
d1 (-0.2/-0.5)
73.000 mm
B
5.500 mm
r
1.000 mm
