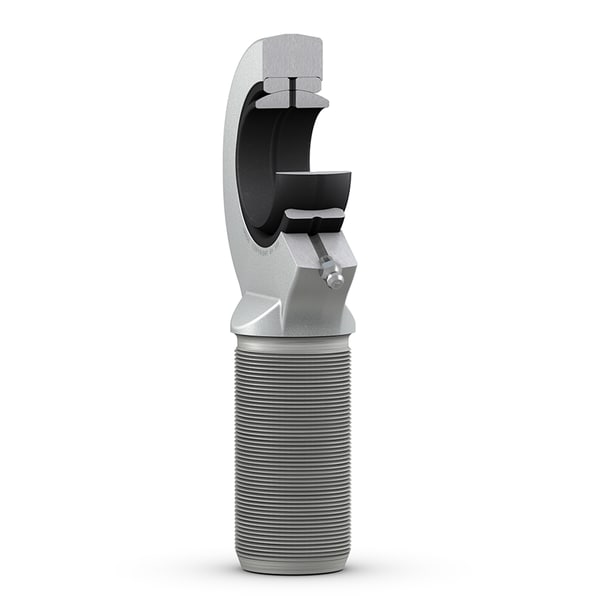

SKF SA 17 ES
Rod end, requires maintenance, male thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
17.0 mm
Bore diameter
d2
47.0 mm
Diameter head
B
14.0 mm
Width inner ring
G
M 16
Thread
C1
11.5 mm
Width head
h
69.0 mm
Height shank end face - centre rod end eye
α
10.0 °
Angle of tilt
dk
25.0 mm
Raceway diameter inner ring
l1
36.0 mm
Length thread
l2
94.0 mm
Length (height) housing
l7
22.0 mm
Distance shank chamfer - centre rod end eye
r1
0.3 mm
Chamfer dimension bore
mass
0.19 kg
Product net weight
