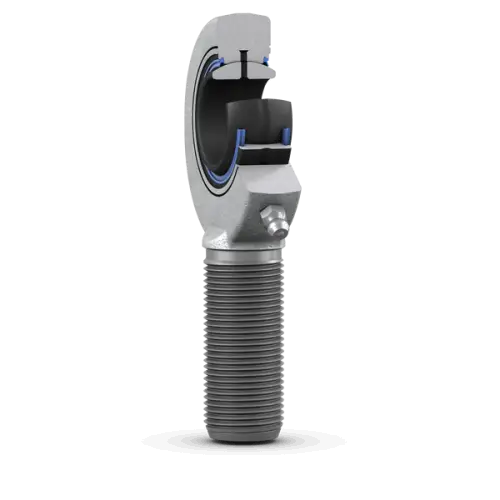

SKF SA 70 ES-2RS
Rod end, requires maintenance, sealed, male thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
d2
162.0 mm
Diameter head
B
49.0 mm
Width inner ring
G
M 72x4
Thread
C1
43.0 mm
Width head
h
265.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
92.0 mm
Raceway diameter inner ring
l1
132.0 mm
Length thread
l2
349.0 mm
Length (height) housing
l7
85.0 mm
Distance shank chamfer - centre rod end eye
r1
1.0 mm
Chamfer dimension bore
mass
10.5 kg
Product net weight
