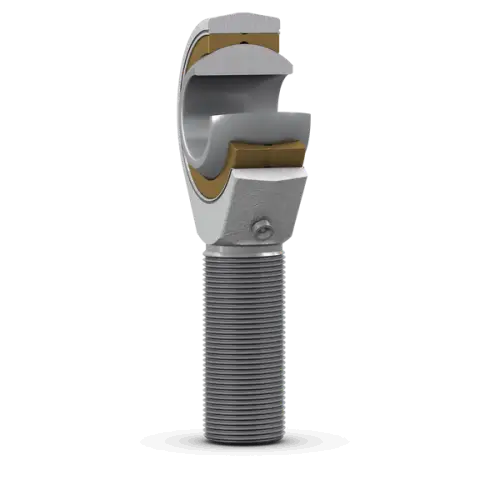

SKF SAKAC 10 M
Rod end, requires maintenance, male thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
10.0 mm
Bore diameter
d2
29.0 mm
Diameter head
B
14.0 mm
Width inner ring
G
M 10
Thread
C1
11.5 mm
Width head
h
48.0 mm
Height shank end face - centre rod end eye
α
13.0 °
Angle of tilt
dk
19.05 mm
Raceway diameter inner ring
l1
28.0 mm
Length thread
l2
64.0 mm
Length (height) housing
r1
0.3 mm
Chamfer dimension bore
mass
0.0662 kg
Product net weight
