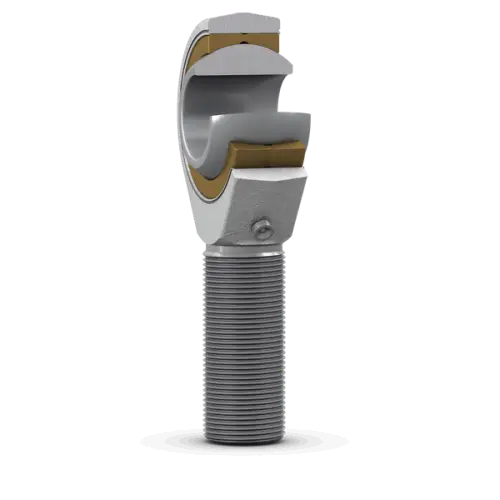

SKF SAKAC 18 M
Rod end, requires maintenance, male thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
18.0 mm
Bore diameter
d2
47.0 mm
Diameter head
B
23.0 mm
Width inner ring
G
M 18x1.5
Thread
C1
17.5 mm
Width head
h
72.0 mm
Height shank end face - centre rod end eye
α
15.0 °
Angle of tilt
dk
31.75 mm
Raceway diameter inner ring
l1
41.0 mm
Length thread
l2
97.0 mm
Length (height) housing
r1
0.3 mm
Chamfer dimension bore
mass
0.29 kg
Product net weight
