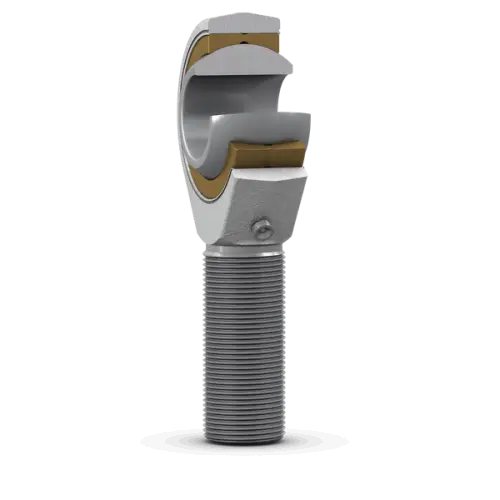

SKF SAKAC 22 M
Rod end, requires maintenance, male thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
22.0 mm
Bore diameter
d2
55.0 mm
Diameter head
B
28.0 mm
Width inner ring
G
M 22x1.5
Thread
C1
21.0 mm
Width head
h
84.0 mm
Height shank end face - centre rod end eye
α
15.0 °
Angle of tilt
dk
38.1 mm
Raceway diameter inner ring
l1
48.0 mm
Length thread
l2
114.0 mm
Length (height) housing
r1
0.3 mm
Chamfer dimension bore
mass
0.47 kg
Product net weight
