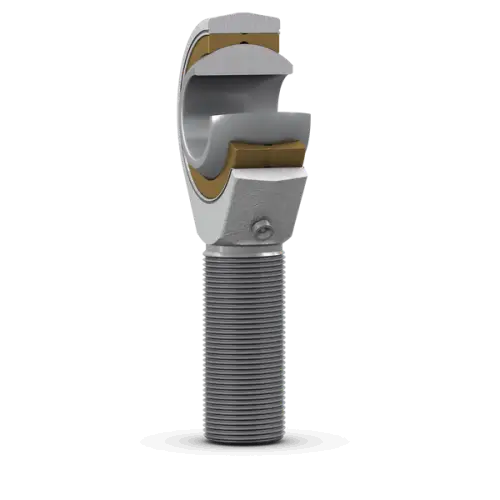

SKF SAKAC 30 M
Rod end, requires maintenance, male thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
30.0 mm
Bore diameter
d2
71.0 mm
Diameter head
B
37.0 mm
Width inner ring
G
M 30x2
Thread
C1
27.0 mm
Width head
h
110.0 mm
Height shank end face - centre rod end eye
α
17.0 °
Angle of tilt
dk
50.8 mm
Raceway diameter inner ring
l1
66.0 mm
Length thread
l2
148.0 mm
Length (height) housing
r1
0.3 mm
Chamfer dimension bore
mass
1.04 kg
Product net weight
