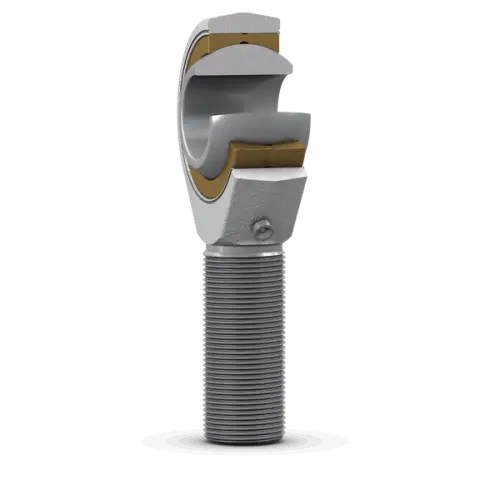

SKF SAKAC 6 M
Rod end, requires maintenance, male thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
6.0 mm
Bore diameter
d2
21.0 mm
Diameter head
B
9.0 mm
Width inner ring
G
M 6
Thread
C1
7.5 mm
Width head
h
36.0 mm
Height shank end face - centre rod end eye
α
13.0 °
Angle of tilt
dk
12.7 mm
Raceway diameter inner ring
l1
21.0 mm
Length thread
l2
48.0 mm
Length (height) housing
r1
0.3 mm
Chamfer dimension bore
mass
0.023 kg
Product net weight
