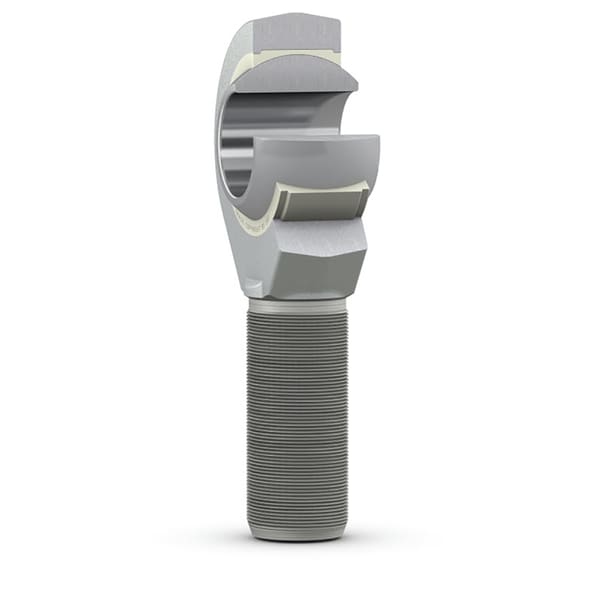

SKF SAKB 16 F
Rod end, maintenance-free, male thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
16.0 mm
Bore diameter
d2
43.0 mm
Diameter head
B
21.0 mm
Width inner ring
G
M 16
Thread
C1
15.5 mm
Width head
h
66.0 mm
Height shank end face - centre rod end eye
α
16.0 °
Angle of tilt
dk
28.575 mm
Raceway diameter inner ring
l1
37.0 mm
Length thread
l2
89.0 mm
Length (height) housing
l7
21.0 mm
Distance shank chamfer - centre rod end eye
r1
0.3 mm
Chamfer dimension bore
mass
0.201 kg
Product net weight
