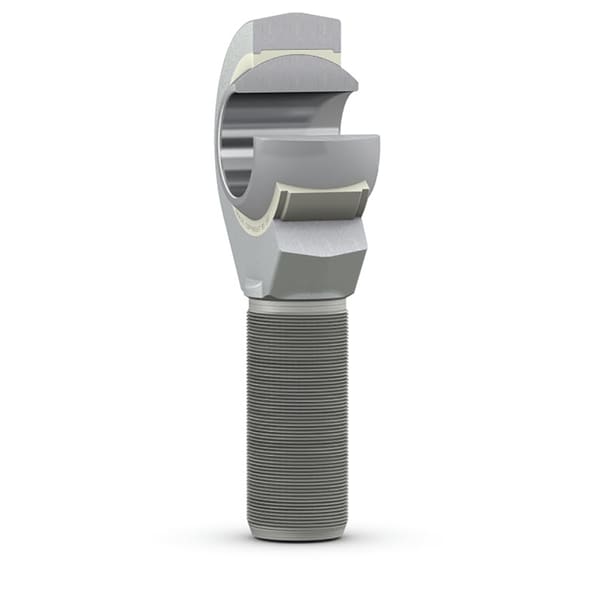

SKF SAKB 20 F
Rod end, maintenance-free, male thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.0 mm
Bore diameter
d2
51.0 mm
Diameter head
B
25.0 mm
Width inner ring
G
M 20x1.5
Thread
C1
18.5 mm
Width head
h
78.0 mm
Height shank end face - centre rod end eye
α
16.0 °
Angle of tilt
dk
34.925 mm
Raceway diameter inner ring
l1
45.0 mm
Length thread
l2
106.0 mm
Length (height) housing
l7
25.0 mm
Distance shank chamfer - centre rod end eye
r1
0.3 mm
Chamfer dimension bore
mass
0.359 kg
Product net weight
