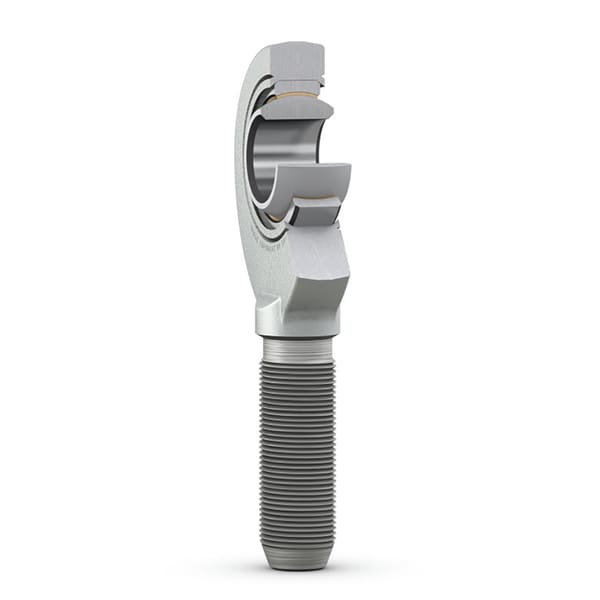

SKF SAL 10 C
Rod end, maintenance-free, male thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
10.0 mm
Bore diameter
d2
30.0 mm
Diameter head
B
9.0 mm
Width inner ring
G
M 10
Thread
C1
7.5 mm
Width head
h
48.0 mm
Height shank end face - centre rod end eye
α
12.0 °
Angle of tilt
dk
16.0 mm
Raceway diameter inner ring
l1
26.0 mm
Length thread
l2
65.0 mm
Length (height) housing
l7
13.0 mm
Distance shank chamfer - centre rod end eye
r1
0.3 mm
Chamfer dimension bore
mass
0.049 kg
Product net weight
