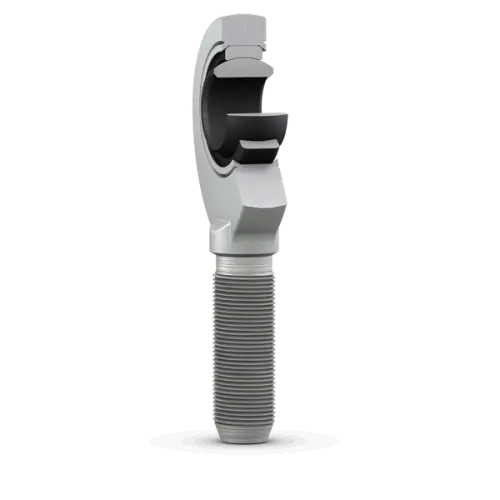

SKF SAL 12 E
Rod end, requires maintenance, male thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
12.0 mm
Bore diameter
d2
35.0 mm
Diameter head
B
10.0 mm
Width inner ring
G
M 12
Thread
C1
8.5 mm
Width head
h
54.0 mm
Height shank end face - centre rod end eye
α
10.0 °
Angle of tilt
dk
18.0 mm
Raceway diameter inner ring
l1
28.0 mm
Length thread
l2
73.0 mm
Length (height) housing
l7
17.0 mm
Distance shank chamfer - centre rod end eye
r1
0.3 mm
Chamfer dimension bore
mass
0.084 kg
Product net weight
