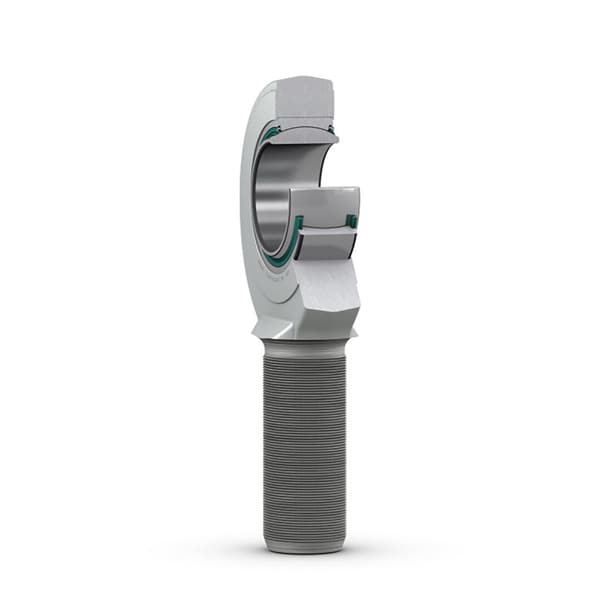

SKF SAL 40 TXE-2LS
Rod end, maintenance-free, sealed, male thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
40.0 mm
Bore diameter
d2
94.0 mm
Diameter head
B
28.0 mm
Width inner ring
G
M 42x3
Thread
C1
24.0 mm
Width head
h
145.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
53.0 mm
Raceway diameter inner ring
l1
76.0 mm
Length thread
l2
194.0 mm
Length (height) housing
l7
46.0 mm
Distance shank chamfer - centre rod end eye
r1
0.6 mm
Chamfer dimension bore
mass
2.01 kg
Product net weight
