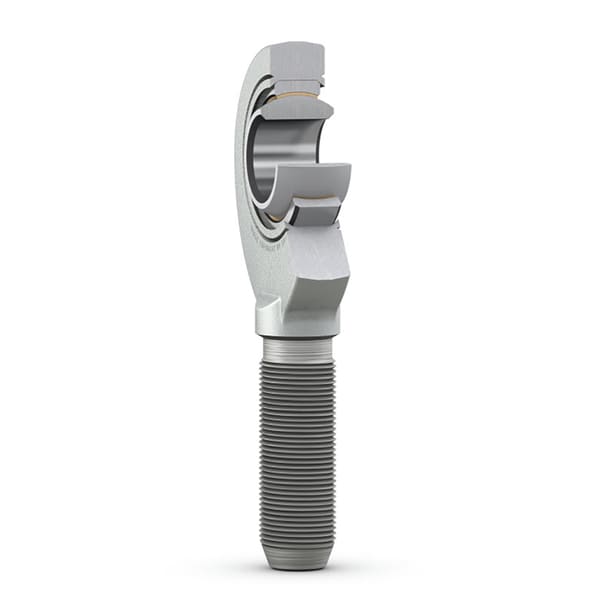

SKF SAL 6 C
Rod end, maintenance-free, male thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
6.0 mm
Bore diameter
d2
22.0 mm
Diameter head
B
6.0 mm
Width inner ring
G
M 6
Thread
C1
4.5 mm
Width head
h
36.0 mm
Height shank end face - centre rod end eye
α
13.0 °
Angle of tilt
dk
10.0 mm
Raceway diameter inner ring
l1
16.0 mm
Length thread
l2
49.0 mm
Length (height) housing
l7
10.0 mm
Distance shank chamfer - centre rod end eye
r1
0.3 mm
Chamfer dimension bore
mass
0.0172 kg
Product net weight
