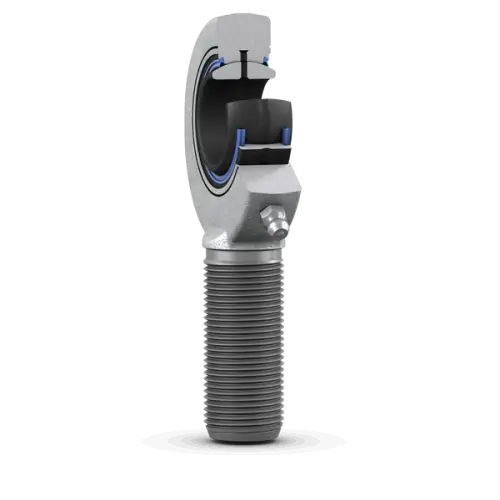

SKF SALA 45 ES-2RS
Rod end, requires maintenance, sealed, male thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
45.0 mm
Bore diameter
d2
104.0 mm
Diameter head
B
32.0 mm
Width inner ring
G
M 42x3
Thread
C1
28.0 mm
Width head
h
163.0 mm
Height shank end face - centre rod end eye
α
7.0 °
Angle of tilt
dk
60.0 mm
Raceway diameter inner ring
l1
92.0 mm
Length thread
l2
217.0 mm
Length (height) housing
l7
50.0 mm
Distance shank chamfer - centre rod end eye
r1
0.6 mm
Chamfer dimension bore
mass
2.45 kg
Product net weight
